v9: Machine cell concept v1, paste strategy, docs site

Frozen Tue Oct 20, 2026, 11:28 AM ET · 3 files · folder: versions/v9_2026-10-20/

This snapshot is older than v21 and keeps notes and UI only; the large CAD, mesh and render files are no longer on this site.

What changed

New in this snapshot: 106 drawings, 0 STEP files, 0 documents/media.

Key decisions

Drawings new in v9

2026_10_20_osso_machine_cell_v1
2026_10_20_osso_machine_cell_v1
osso_machine_cell_v1
osso_machine_cell_v1
preview_home
preview_home
preview_version
preview_version
osso_machine_cell_v1
osso_machine_cell_v1
osso_top_v1i
osso_top_v1i
grid_copper_preview
grid_copper_preview
grid_mask_preview
grid_mask_preview
resolution_pattern_preview
resolution_pattern_preview
osso_base_v2a
osso_base_v2a
osso_base_v2b
osso_base_v2b
osso_base_v2c
osso_base_v2c
osso_base_v2d
osso_base_v2d
osso_base_v2d_sym
osso_base_v2d_sym
osso_base_v2e
osso_base_v2e
osso_base_v2f
osso_base_v2f
osso_base_v2g
osso_base_v2g
osso_base_v2g2
osso_base_v2g2
osso_base_v2h
osso_base_v2h
osso_base_v2h2
osso_base_v2h2
osso_base_v2j
osso_base_v2j
osso_base_v2j2
osso_base_v2j2
osso_base_v2j3
osso_base_v2j3
osso_base_v2j4
osso_base_v2j4
osso_base_v2k
osso_base_v2k
osso_base_v2k2
osso_base_v2k2
osso_base_v2l
osso_base_v2l
osso_base_v2l_a
osso_base_v2l_a
osso_base_v2l_b
osso_base_v2l_b
osso_base_v2l_c
osso_base_v2l_c
osso_base_v2l_options
osso_base_v2l_options
osso_base_v2m
osso_base_v2m
osso_base_v2m_interposer
osso_base_v2m_interposer
osso_base_v2n
osso_base_v2n
osso_base_v2p
osso_base_v2p
osso_base_v2q
osso_base_v2q
osso_base_v2r
osso_base_v2r
osso_base_v2s
osso_base_v2s
osso_base_v2t
osso_base_v2t
osso_base_v2u
osso_base_v2u
osso_exploded_v2u
osso_exploded_v2u
osso_exploded_v2v_p1
osso_exploded_v2v_p1
osso_exploded_v2v_p2
osso_exploded_v2v_p2
osso_stack_side_v2u
osso_stack_side_v2u
osso_v2_stack_concept
osso_v2_stack_concept
osso_v2_stack_concept_b
osso_v2_stack_concept_b
align_proposal_v3a
align_proposal_v3a
osso_base_v3a
osso_base_v3a
osso_base_v3b
osso_base_v3b
osso_exploded_v3a_p1
osso_exploded_v3a_p1
osso_exploded_v3a_p2
osso_exploded_v3a_p2
osso_exploded_v3b_p1
osso_exploded_v3b_p1
osso_exploded_v3b_p2
osso_exploded_v3b_p2
osso_stack_side_v3a
osso_stack_side_v3a
GBL
GBL
GBO
GBO
GBS
GBS
GTL
GTL
GTO
GTO
GTS
GTS
composite_bot
composite_bot
composite_top
composite_top
drills_outline
drills_outline
sheet
sheet
silk_pair
silk_pair
zoom
zoom
OSSO_blank_v3b_preview_bot
OSSO_blank_v3b_preview_bot
OSSO_blank_v3b_preview_layers
OSSO_blank_v3b_preview_layers
OSSO_blank_v3b_preview_top
OSSO_blank_v3b_preview_top
preview_assembly_iso
preview_assembly_iso
preview_carrier_top
preview_carrier_top
preview_exploded_iso
preview_exploded_iso
jig_v4a_p1
jig_v4a_p1
jig_v4a_p2
jig_v4a_p2
grid_copper_preview
grid_copper_preview
grid_mask_preview
grid_mask_preview
resolution_pattern_preview
resolution_pattern_preview
OSSO_blank_v3b_preview_iso
OSSO_blank_v3b_preview_iso
preview_carrier_edge_iso
preview_carrier_edge_iso
preview_carrier_faceup_iso
preview_carrier_faceup_iso
preview_carrier_print_orientation
preview_carrier_print_orientation
designer_standoff_12mm_cad_2026-10-19
designer_standoff_12mm_cad_2026-10-19
YZD0029-20135-01_datasheet_drawing
YZD0029-20135-01_datasheet_drawing
YZD0029-20135-01_preview_12mm
YZD0029-20135-01_preview_12mm
datasheet_page3_200dpi
datasheet_page3_200dpi
lcsc_photo_front
lcsc_photo_front
osso_top_v1a
osso_top_v1a
osso_top_v1b
osso_top_v1b
osso_top_v1c
osso_top_v1c
osso_top_v1d
osso_top_v1d
osso_top_v1e
osso_top_v1e
osso_top_v1f
osso_top_v1f
osso_top_v1g
osso_top_v1g
osso_mains_companion_508_v1
osso_mains_companion_508_v1
osso_top_v1h
osso_top_v1h
psu_companion_fit_v1
psu_companion_fit_v1
psu_companion_fit_v2
psu_companion_fit_v2
psu_companion_fit_v3
psu_companion_fit_v3
psu_companion_fit_v4
psu_companion_fit_v4
card_edge_psu_companion_v1
card_edge_psu_companion_v1
osso_top_v1i
osso_top_v1i
wave_pot_v1
wave_pot_v1
wave_pot_v1_p2
wave_pot_v1_p2
2026-10-20_top_v1h_lower_center_SMT
2026-10-20_top_v1h_lower_center_SMT
preview_home
preview_home
preview_version
preview_version

STEP files (0)

Documents & media

Journal entries in this version

2026-10-20 10:00 AM ET — Design note (the designer)

Oct 20, 2026 · 10:00 AM ET · journal ↗

Card-edge connectors/cards may use a 3D-printed skeleton for standardized mounting to the enclosure (pairs with queued corner drills on card-edge boards).

2026-10-20 10:13 AM ET — Design note (the designer)

Oct 20, 2026 · 10:13 AM ET · journal ↗

Placement/routing code test harnesses: use known, tested PCBs with full designs as references; the harness attempts to replicate each as an OSSO stack.

2026-10-20 10:16 AM ET — Test harness pin (the designer)

Oct 20, 2026 · 10:16 AM ET · journal ↗

Fan-favorite reference test: Commodore 64 motherboard replica (the designer's first computer). Starter harness candidates: Ben Eater 6502, RC2014 (Z80). Also considered: Apple II, ZX Spectrum (Harlequin). Repo links unverified.

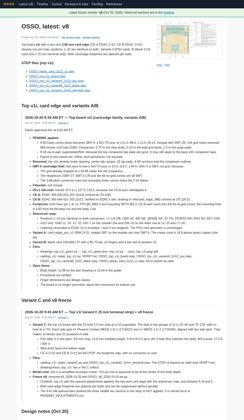

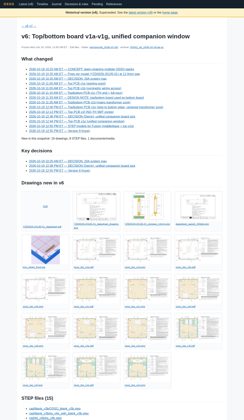

2026-10-20 10:48 AM ET — Documentation website (local static site)

Oct 20, 2026 · 10:48 AM ET · journal ↗

the designer approved this at 10:45 AM ET.

2026-10-20 10:54 AM ET — New exploration: the Machine (documentation only)

Oct 20, 2026 · 10:54 AM ET · journal ↗

Manufacturing from blank to object per spec (spec definition/checking deferred). The "machine" = a cell with the humanoid operator (the designer as prototype) plus stations within easy reach and supporting operations. Draft stations: 1 Kitting, 2 Laser ablation, 3 Clean/inspect, 4 Paste+SMT placement, 5 Reflow, 6 TH/selective (dip pot), 7 Companion/card prep, 8 Stacking, 9 Test, 10 Enclosure/finish. Support: fume/vent, ESD, tooling storage, 3D printer, parts storage, rework, spec/traveler display. Layout idea: U/L cell, dirty/hot vs clean sides. Open: seated/standing, footprint, laser in-cell or separate.

2026-10-20 10:56 AM ET — Machine layout decision (the designer)

Oct 20, 2026 · 10:56 AM ET · journal ↗

Cell is a C shape for a standing operator: no lateral movement, every operation within reach (turn at the waist only). Planning numbers (to verify): ~500–600 mm comfortable reach, inner C radius ~0.6 m, counter at elbow height ~950–1050 mm, tall tools on outer ring/upper shelf, kitting/parts below counter.

2026-10-20 10:57 AM ET — Machine rule (the designer)

Oct 20, 2026 · 10:57 AM ET · journal ↗

Every machine (laser, reflow, dip pot, pick-and-place, printer, test) is built into the C cell, within the standing operator's reach. No separate rooms or remote tools. Implies compact, cell-integrated tools with built-in fume extraction and enclosures for the hot/laser stations.

2026-10-20 10:59 AM ET — Machine requirement: human factors first (the designer)

Oct 20, 2026 · 10:59 AM ET · journal ↗

First operator is a human, so the cell is human-friendly: safety (source fume extraction, laser enclosure + interlock, hot-surface guarding, e-stop, fire safety), ergonomics (standing primary with optional bench chair / sit-stand, adjustable heights, anti-fatigue mat), magnification (magnifier/stereo microscope at fine stations), lighting (even, glare-free task lighting). Human-only provisions may be removed later for a humanoid; for now human-friendly.

2026-10-20 11:00 AM ET — Machine principle: organ console (the designer)

Oct 20, 2026 · 11:00 AM ET · journal ↗

Maximize items/storage within reach, like an organ player: tiered vertical layers around one position. Upper tiers: angled bins/tool racks following the C; main tier: work surface + machine bays at elbow height; lower: shallow pull-out drawers (kitting/fixtures); foot pedals for hands-free actions (vacuum pickup, reflow start, extractor). Placement by frequency of use (most used front-centre at elbow height).

2026-10-20 11:01 AM ET — Machine rule: no conveyance (the designer)

Oct 20, 2026 · 11:01 AM ET · journal ↗

No part conveyance in the cell. The operator moves the part between operations to reduce clutter in the mechanism. Implies: each station has a clear landing/staging spot and a common, repeatable board nest/fixture interface so the board registers the same way at every station.

2026-10-20 11:01 AM ET — Machine rule: jigs per machine (the designer)

Oct 20, 2026 · 11:01 AM ET · journal ↗

Every machine has a dedicated jig for repeatable operations. Jigs share one board datum (tooling holes + fiducials on the 140 mm blank) so the board registers identically at each station; jigs keyed/poka-yoke, 3D-printable in the cell. Ties to the no-conveyance common nest rule.

2026-10-20 11:03 AM ET — Machine operating model (the designer)

Oct 20, 2026 · 11:03 AM ET · journal ↗

Humans make errors, so every operation has poka-yoke (keyed jigs, board presence/orientation sensing, interlocks that only allow start with correct jig + board seated) and a digital display at each machine with operator instructions driven by the spec/traveler. The cell is self-operating: machines run their operations automatically; the human only performs transport steps between stations.

2026-10-20 11:05 AM ET — Machine decision: process order via signage (the designer)

Oct 20, 2026 · 11:05 AM ET · journal ↗

Station physical placement implies NO sequence (no top-to-bottom/left-to-right order). Process order is shown by the digital display at each machine indicating what is next. Displays are e-watch sized (~1.5–2 in). Placement is then free to optimize reach, frequency and ventilation; sequence can vary per spec. Suggestion (open): next station highlights itself (flashing display or light ring) for at-a-glance guidance.

2026-10-20 11:06 AM ET — Machine decision: station lighting cue (the designer)

Oct 20, 2026 · 11:06 AM ET · journal ↗

Accepted: the next station highlights itself (light ring/display), like a theater program cueing the next scene. Moves from open suggestion to decision.

2026-10-20 11:07 AM ET — Machine rule: sequence-tied interlocks (the designer)

Oct 20, 2026 · 11:07 AM ET · journal ↗

Any machine requiring an interlock is tied to the process sequence: it stays locked and unlocks only when its step is the current required step. Out-of-sequence access is blocked (poka-yoke at the cell level). Open follow-ups: e-stop always active independent of sequence; keyed maintenance/override mode for cleaning, jams and service.

2026-10-20 11:08 AM ET — Machine decision: e-stop and safety rollback (the designer)

Oct 20, 2026 · 11:08 AM ET · journal ↗

E-stop is always engaged/active, independent of the sequence. Faults and e-stop trigger safety rollbacks to a defined safe state, and restart requires a defined reset sequence before resuming. (Keyed maintenance mode is still an open item.)

2026-10-20 11:09 AM ET — Machine decision: inspection in the sequence (the designer)

Oct 20, 2026 · 11:09 AM ET · journal ↗

An inspection step follows operations in the sequence: the operator brings the part to the inspection station (jigged), where it gets magnification and image capture, AI interpretation, and an operator decision (pass / rework / scrap). Images and decisions are logged to the traveler (builds a dataset for future checks). Now: visual inspection with AI interpretation; more sophisticated checks later.

2026-10-20 11:10 AM ET — Machine layout revision (the designer)

Oct 20, 2026 · 11:10 AM ET · journal ↗

Revises the earlier "no lateral movement" rule: operator lateral movement of up to ±1 m is OK, to keep the cell from getting cramped. Usable span ~2 m plus arm reach each side; C shape and standing position remain.

2026-10-20 11:11 AM ET — Machine decision: clad exterior (the designer)

Oct 20, 2026 · 11:11 AM ET · journal ↗

The outside of the C is fully clad in the concept, so external operations cannot interfere; all access is from the inside, operator position. (Service access, exhaust and utility penetrations to be planned through the cladding.)

2026-10-20 11:12 AM ET — Machine decision: entry opening (the designer)

Oct 20, 2026 · 11:12 AM ET · journal ↗

The C may close around until only a door-width opening remains for operator entry; no physical door is required.

2026-10-20 11:13 AM ET — Machine decision: height and header (the designer)

Oct 20, 2026 · 11:13 AM ET · journal ↗

Cell height is about door height (~2.0–2.1 m). A closing brace/header spans above the entry opening for structural strength, closing the ring.

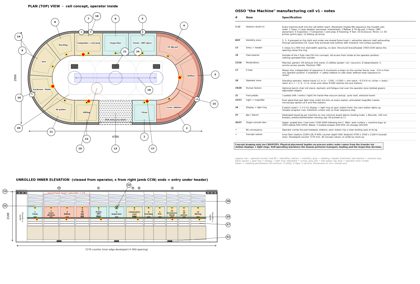

2026-10-20 11:17 AM ET — Machine cell concept drawing v1 (approved 11:13 AM)

Oct 20, 2026 · 11:17 AM ET · journal ↗

drawings/osso_machine_cell_v1.png/.pdf (script osso_machine_cell_v1.py): concept only, no CAD. Plan view + unrolled inner elevation + notes. Concept values: inner floor stadium 2200 straight + R600 ends (operator ±1 m), counter depth 600, cladding 50 → footprint 4700 x 2500 x 2100 H; 900 entry with header 1950–2100; developed counter ~7.27 m. Stations: hot zone right end (laser enclosed/interlocked, reflow, dip pot, shared hood + exhaust EX); clean front-right; paste/SMT, inspection (back centre), companion prep on the back; stacking, test, enclosure/finish, 3D printer on the left end; kitting front-left at entry. 6 e-stops, 3 pedals, display + light ring + jig on each station, organ tiers (bins 1500–2000, surface 1000, drawers 650–950). Penetrations (EX/U/D/S) generic.

2026-10-20 11:22 AM ET — Machine decision: blanks bought-in (the designer)

Oct 20, 2026 · 11:22 AM ET · journal ↗

Blanks, companions and cards are bought-in pre-plated project/pcb/fab stock (PTH/vias, ENIG, hard-gold bevelled fingers, routed outlines/key slots/tooling holes). The cell does personalisation (laser) and assembly. Note: the mains PSU card test needs an isolated, guarded fixture (possibly hipot) with its own interlock and shielding at test station 9.

2026-10-20 11:23 AM ET — Machine decision: paste by XYZ dispensing (the designer)

Oct 20, 2026 · 11:23 AM ET · journal ↗

Solder paste is applied by an automated XYZ dispenser (jet/auger) driven directly from the spec paste layer. No stencils are produced. Open: fine-pitch support level; possible shared gantry with pick-and-place.

2026-10-20 11:24 AM ET — Machine decision: shared paste/placement gantry (the designer)

Oct 20, 2026 · 11:24 AM ET · journal ↗

Paste dispensing and pick-and-place share one gantry (tool heads: dispenser + vacuum nozzle). Custom equipment optimized for the 140 mm OSSO board size (and companion/card boards), not adapted generic machines.

2026-10-20 11:27 AM ET — Machine decision: paste pitch limit (the designer)

Oct 20, 2026 · 11:27 AM ET · journal ↗

Locked: 0402 is the smallest supported package for now. A jet dispensing head is required on the shared gantry. Still no stencils. Anything smaller than 0402 goes on an externally fabricated companion board.

2026-10-20 11:27 AM ET — Version freeze v9

Oct 20, 2026 · 11:27 AM ET · journal ↗

Frozen to project/versions/v9_2026-10-20 + OSSO_v9_2026-10-20.tar.gz. Since v8: card-edge design notes, test harness (C64 fan favorite), docs website, Machine cell exploration and concept drawing v1, paste strategy (XYZ jet dispense on shared custom gantry, 0402 min, no stencils), blanks bought-in.
