v17: Integrated machine skeleton v1-v3b: custom 2020/2040 bed slinger, MGN12 + lead screws on all axes, inline UV laser on a motorized focus column, multi-row tray, enclosed with left door, under-bed electronics bay

Frozen Sun Oct 25, 2026, 2:40 PM ET · 7 files · folder: versions/v17_2026-10-25/

This snapshot is older than v21 and keeps notes and UI only; the large CAD, mesh and render files are no longer on this site.

What changed

New in this snapshot: 54 drawings, 0 STEP files, 0 documents/media.

Key decisions

Drawings new in v17

2026_10_25_skeleton_v1_front
2026_10_25_skeleton_v1_front
2026_10_25_skeleton_v1_iso
2026_10_25_skeleton_v1_iso
2026_10_25_skeleton_v1_side
2026_10_25_skeleton_v1_side
2026_10_25_skeleton_v1_top
2026_10_25_skeleton_v1_top
2026_10_25_skeleton_v2_front
2026_10_25_skeleton_v2_front
2026_10_25_skeleton_v2_iso
2026_10_25_skeleton_v2_iso
2026_10_25_skeleton_v2_side
2026_10_25_skeleton_v2_side
2026_10_25_skeleton_v2_top
2026_10_25_skeleton_v2_top
2026_10_25_skeleton_v3_front
2026_10_25_skeleton_v3_front
2026_10_25_skeleton_v3_iso
2026_10_25_skeleton_v3_iso
2026_10_25_skeleton_v3_side
2026_10_25_skeleton_v3_side
2026_10_25_skeleton_v3_top
2026_10_25_skeleton_v3_top
2026_10_25_skeleton_v3b_front
2026_10_25_skeleton_v3b_front
2026_10_25_skeleton_v3b_iso
2026_10_25_skeleton_v3b_iso
2026_10_25_skeleton_v3b_side
2026_10_25_skeleton_v3b_side
2026_10_25_skeleton_v3b_top
2026_10_25_skeleton_v3b_top
2026_10_25_laser_ref_uv_column
2026_10_25_laser_ref_uv_column
2026_10_25_laser_ref_wattsan
2026_10_25_laser_ref_wattsan
laser_ref_uv_column
laser_ref_uv_column
laser_ref_wattsan
laser_ref_wattsan
skeleton_v1_front
skeleton_v1_front
skeleton_v1_iso
skeleton_v1_iso
skeleton_v1_side
skeleton_v1_side
skeleton_v1_top
skeleton_v1_top
skeleton_v2_front
skeleton_v2_front
skeleton_v2_iso
skeleton_v2_iso
skeleton_v2_side
skeleton_v2_side
skeleton_v2_top
skeleton_v2_top
skeleton_v3_front
skeleton_v3_front
skeleton_v3_iso
skeleton_v3_iso
skeleton_v3_side
skeleton_v3_side
skeleton_v3_top
skeleton_v3_top
skeleton_v3b_front
skeleton_v3b_front
skeleton_v3b_iso
skeleton_v3b_iso
skeleton_v3b_side
skeleton_v3b_side
skeleton_v3b_top
skeleton_v3b_top
laser_ref_uv_column
laser_ref_uv_column
laser_ref_wattsan
laser_ref_wattsan
skeleton_v1_front
skeleton_v1_front
skeleton_v1_iso
skeleton_v1_iso
skeleton_v1_side
skeleton_v1_side
skeleton_v1_top
skeleton_v1_top
skeleton_v2_front
skeleton_v2_front
skeleton_v2_iso
skeleton_v2_iso
skeleton_v2_side
skeleton_v2_side
skeleton_v2_top
skeleton_v2_top
skeleton_v3_front
skeleton_v3_front
skeleton_v3_iso
skeleton_v3_iso
skeleton_v3_side
skeleton_v3_side
skeleton_v3_top
skeleton_v3_top
skeleton_v3b_front
skeleton_v3b_front
skeleton_v3b_iso
skeleton_v3b_iso
skeleton_v3b_side
skeleton_v3b_side
skeleton_v3b_top
skeleton_v3b_top

STEP files (0)

Documents & media

Journal entries in this version

2026-10-25 1:13 PM EDT: Integrated machine phase begins

Oct 25, 2026 · 1:13 PM ET · journal ↗

the designer handed design leadership to OSSO. The goal is a full-machine STEP assembly with assembly directions, covering components and assembly only (no software, firmware or final PCBs). OSSO leads a team of engineering roles, sends every choice to the designer as multiple choice with an Other option, marks blocking choices as IMPORTANT, snaps a version each work day at a point of notable progress, and puts feasibility experiments in TODO. Step 1 is an inventory of the subsystems, the gaps, a proposed team and an iteration plan.

2026-10-25 1:28 PM EDT: Five skeleton decisions (the designer)

Oct 25, 2026 · 1:28 PM ET · journal ↗
  1. Frame: custom 2020/2040 extrusion frame with a bed-slinger layout (the head moves in X and Z, the bed carries Y).
  2. Head: 5 stations in one row (~118 mm).
  3. Laser: overhead in front of the gantry, 150 mm lens.
  4. Enclosure: fully enclosed, interlocked front door.
  5. Electronics: bay under the bed, external compressor. Team: specialist roles run in the background under OSSO. Next is the skeleton assembly (overall size, zero point, travel budget, placeholder blocks).

2026-10-25 1:38 PM EDT: Skeleton v1 built; laser decision

Oct 25, 2026 · 1:38 PM ET · journal ↗

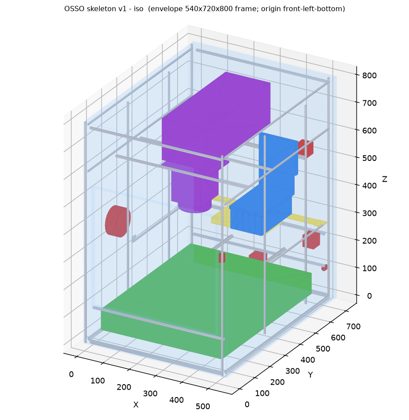

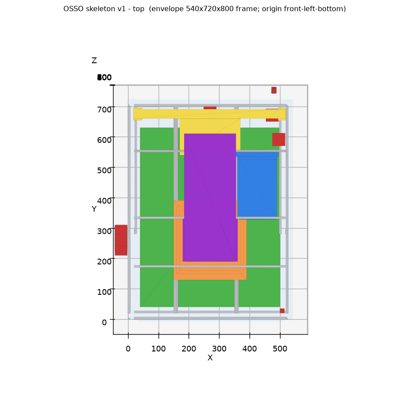

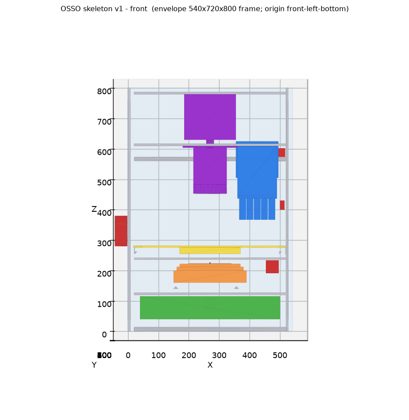

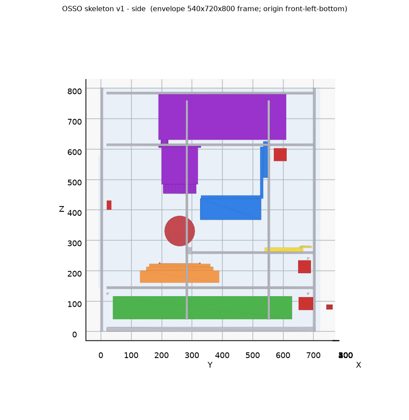

Skeleton v1 (integration/skeleton_v1.*): the frame is 540W x 720D x 800H. Travel is Y 345, X 290, Z 100, tray 232. Nothing collides with the tray parked. Interlocks: head Z high while the tray is extended, and no lasing unless the tray is parked. TODO items 23-27 were added. the designer: the laser source connects directly to the galvo as one unit, like a typical engraving machine. There's no extra fiber or mirrors, and the chiller is external.

2026-10-25 1:39 PM EDT: Skeleton v1 answers (the designer)

Oct 25, 2026 · 1:39 PM ET · journal ↗

2026-10-25 1:58 PM EDT: Skeleton v2 done; laser architecture clarified

Oct 25, 2026 · 1:58 PM ET · journal ↗

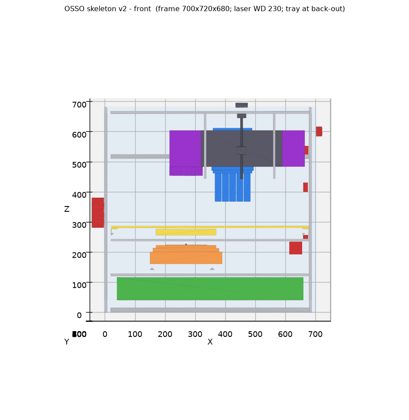

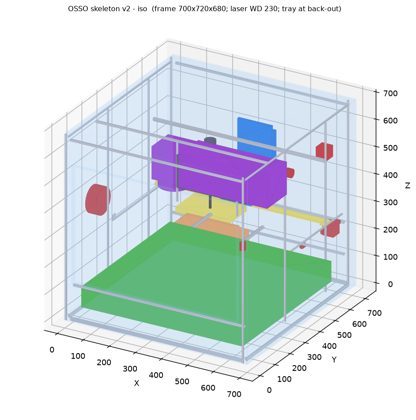

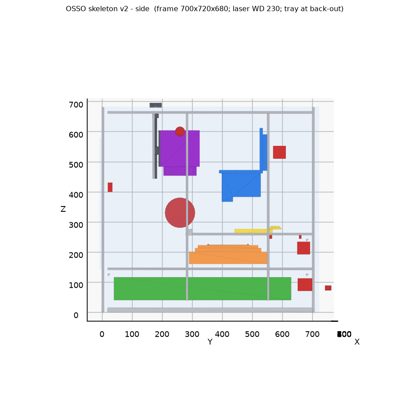

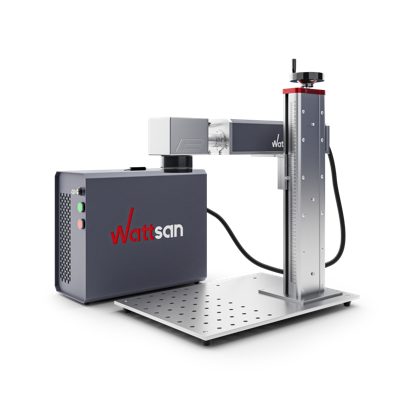

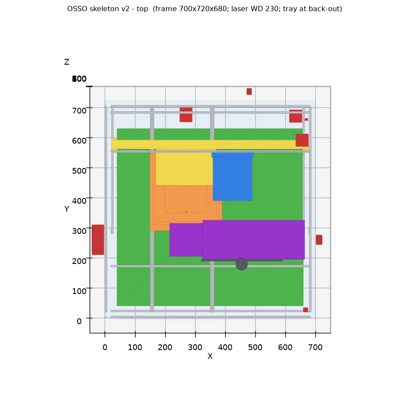

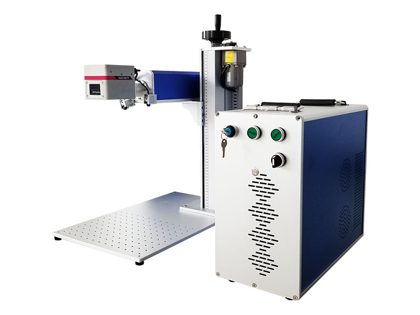

Skeleton v2: the frame is 700W x 720D x 680H, the needle stations use a vertical retract slide (46 mm drop), and the focus mount travels ±40 mm. Interlock rules are v2. TODO items 28-31 were added. the designer sent reference photos (cad/integration/refs/): a typical UV engraver, with the source and galvo as one inline unit on an arm that rides a Z column with a handwheel. The separate box is the chiller, and it's external. Skeleton v3 will compare the arm running along X with the arm running along Y.

2026-10-25 2:19 PM EDT: Skeleton v3 built

Oct 25, 2026 · 2:19 PM ET · journal ↗

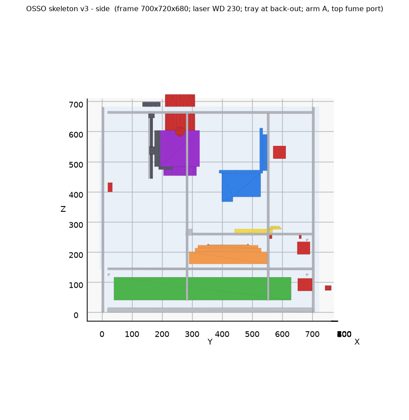

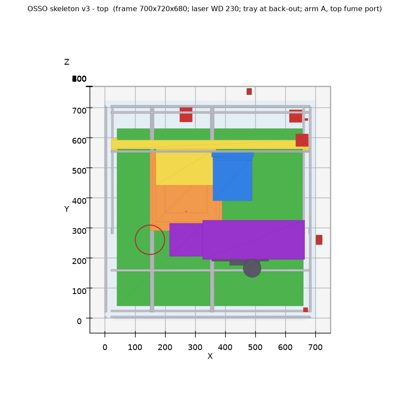

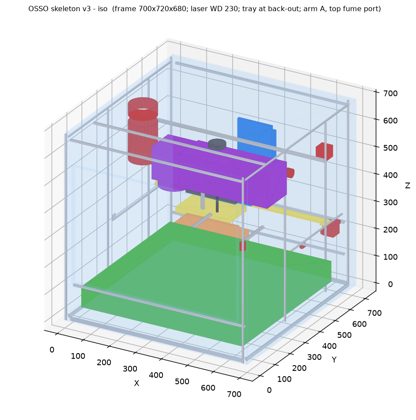

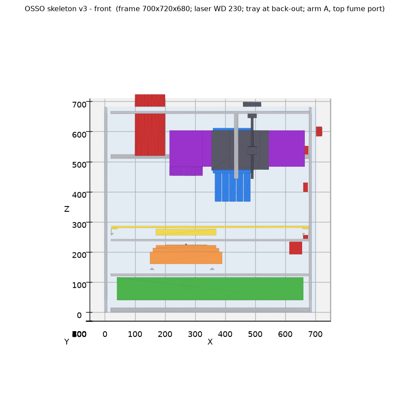

The inline laser unit runs along +X on a front 2040 focus column with a T8x2 screw and handwheel, WD 230±40. The Y-arm option collided with the gantry in every case (it would need a periscope, which is ruled out). The frame is 700x720x680, with a Ø100 top fume port. New interlock rule 6: lasing only while the fume extractor runs. TODO items 32-36 were added. v3 missed the mid-run decisions (15 mm TH, lead screws on all axes, multi-row tray, laser PSU in the bay, left door), so v3b applies them.

2026-10-25 2:39 PM EDT: Skeleton v3b built

Oct 25, 2026 · 2:39 PM ET · journal ↗

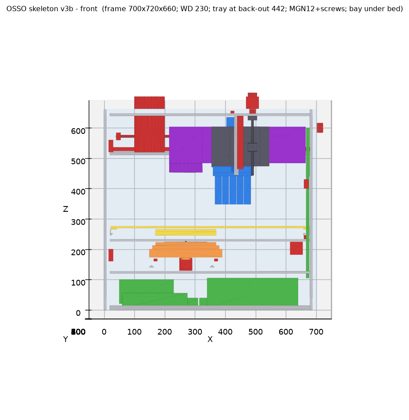

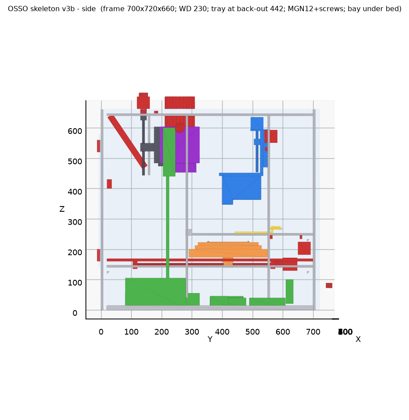

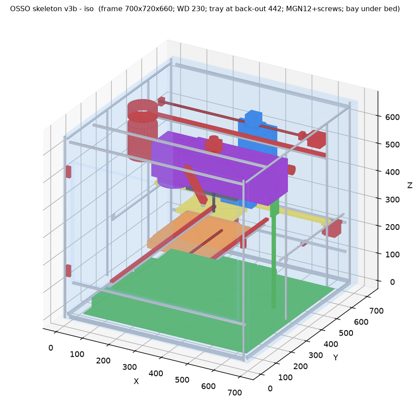

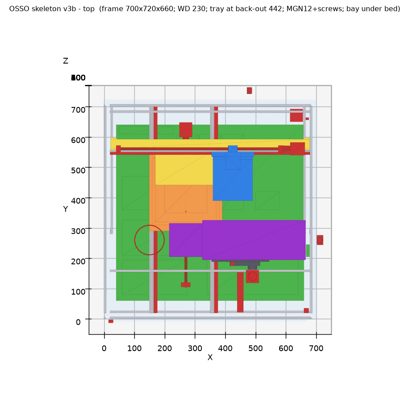

The frame is 700x720x660. All axes are MGN12H with T8 anti-backlash screws, about ±0.02 repeatability, and the Y screw is supported at both ends. The focus is a NEMA17 on T8x2, with a braced column. The tray has 8 rows of 8 mm strips (~360 parts) and backs out to 442. The bay is 620x580x125 and holds the laser driver, PSUs, controller and drivers. The door is hinged on the left. The laser interlock now requires the tray at 442 or further back. TODO items 37-45 were added.

2026-10-25 2:40 PM EDT

Oct 25, 2026 · 2:40 PM ET · journal ↗

Snap v17
