v16: Sliding tray PnP storage (matrix archived), snap-out companion and edge-card panels, shared frame fiducials, one common jig hold

Frozen Sun Oct 25, 2026, 12:02 PM ET · 7 files · folder: versions/v16_2026-10-25/

This snapshot is older than v21 and keeps notes and UI only; the large CAD, mesh and render files are no longer on this site.

What changed

New in this snapshot: 13 drawings, 0 STEP files, 0 documents/media.

Key decisions

Drawings new in v16

2026_10_25_osso_part_storage_v2
2026_10_25_osso_part_storage_v2
2026_10_25_osso_snapout_companion_v1
2026_10_25_osso_snapout_companion_v1
2026_10_25_osso_snapout_companion_v2
2026_10_25_osso_snapout_companion_v2
2026_10_25_osso_snapout_edgecard_v1
2026_10_25_osso_snapout_edgecard_v1
osso_part_storage_v2
osso_part_storage_v2
osso_snapout_companion_v1
osso_snapout_companion_v1
osso_snapout_companion_v2
osso_snapout_companion_v2
osso_snapout_edgecard_v1
osso_snapout_edgecard_v1
osso_part_storage_v1
osso_part_storage_v1
osso_part_storage_v2
osso_part_storage_v2
osso_snapout_companion_v1
osso_snapout_companion_v1
osso_snapout_companion_v2
osso_snapout_companion_v2
osso_snapout_edgecard_v1
osso_snapout_edgecard_v1

STEP files (0)

Documents & media

Journal entries in this version

2026-10-25 7:54 AM EDT — PnP storage: sliding drawer over the bed

Oct 25, 2026 · 7:54 AM ET · journal ↗

the designer: keep the matrix, but the hook sequence (head bump, bed pull, push home) is too many operations, slow and fragile. New direction: a sliding drawer that travels over the bed to bring parts into the head's reach, then pulls back out of the way. The bed hook and head hook approach is shelved as the primary method. Open questions: what drives the slide (own motor or bed-coupled), how the slide clears the bed and needles in Z, how strips move from matrix to slide, and the park position.

2026-10-25 7:56 AM EDT — Correction: sliding drawer is an alternative to the matrix

Oct 25, 2026 · 7:56 AM ET · journal ↗

the designer clarified: the sliding drawer is an alternative design to the matrix, not an add-on. The matrix version is kept as an option. The drawer is cantilevered over the bed from the back frame and is not attached to the bed, for stability.

2026-10-25 7:58 AM EDT — Sliding drawer: whole tray, 2020 extrusion

Oct 25, 2026 · 7:58 AM ET · journal ↗

the designer: the cantilevered slide carries a whole tray, not one strip. 2020 aluminum extrusion serves as both the structure and the rail (V-wheel or printed carriage in the slot). Open items: number of extrusions (one or a parallel pair, to resist twist from an off-center tray), reach versus tip sag, slide drive, Z clearance over TH bodies.

2026-10-25 7:59 AM EDT — Sliding drawer: paired rails, loading from the bed

Oct 25, 2026 · 7:59 AM ET · journal ↗

the designer chose a parallel pair of 2020 extrusions, tied at the tip, for the cantilevered slide. Loading: strips are pulled off the bed (strips staged on the bed are picked off into the slide's tray). Exact handoff mechanics to be confirmed.

2026-10-25 8:00 AM EDT — Sliding drawer: controlled motion

Oct 25, 2026 · 8:00 AM ET · journal ↗

the designer: the slide motor's kinematics control acceleration so parts aren't jostled. Plan: its own stepper with an S-curve (jerk-limited) profile, tuned so the lightest part (0402) stays in its nest. This also cuts tip ringing on the cantilever, so the settle time before a pick is shorter. Loading handoff (strips pulled one by one vs whole tray) still awaiting the designer's answer.

2026-10-25 8:01 AM EDT — Speed split: gentle slide, fast needle

Oct 25, 2026 · 8:01 AM ET · journal ↗

the designer: quick needle movements are possible, so the sliding-drawer approach should be faster overall than the matrix hook sequence. The slide makes one gentle, jerk-limited move in and out per tray, and the needle makes the many fast, short pick-and-place moves. Bed jerk-limiting (placed parts before reflow) was raised as a question, not yet decided.

2026-10-25 8:15 AM EDT — Design rule: minimal tray movement

Oct 25, 2026 · 8:15 AM ET · journal ↗

the designer: the tray moves into position without interfering with bed operations, and tray movement is kept to the minimum needed to reach parts. Implication: the slide indexes to the strip that's needed (a partial extension), not full travel every time, and parks clear of the bed whenever the bed is working.

2026-10-25 8:16 AM EDT — Motion planning by AI rule set

Oct 25, 2026 · 8:16 AM ET · journal ↗

the designer: the coordination of tray, bed, and needle is a complex ballet, but AI will handle the rule set. The rules so far: jerk-limited moves for loose parts, the tray never interferes with the bed, minimal tray movement, fast needle moves, picks grouped by strip, and keepouts around TH bodies. The planner sequences the moves within those constraints.

2026-10-25 8:16 AM EDT — Safety: firmware hard interlocks under the planner

Oct 25, 2026 · 8:16 AM ET · journal ↗

the designer approved: hard limits in firmware sit beneath the AI planner, for example a check that the tray is parked before the bed moves under it, so a planning error can't cause a collision between the tray, bed, and needle.

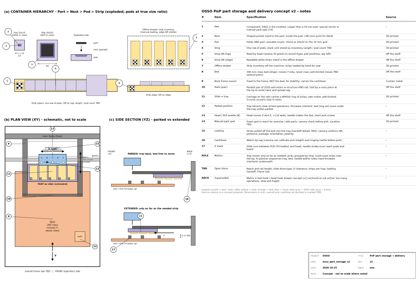

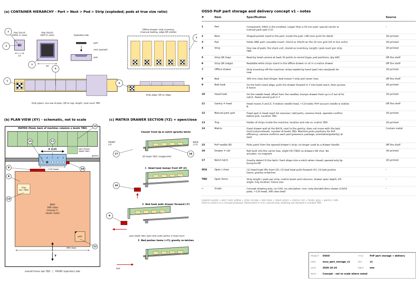

2026-10-25 8:18 AM EDT — Drawing: part storage v2 (cantilevered tray slide); matrix archived

Oct 25, 2026 · 8:18 AM ET · journal ↗

the designer: "This is better." Drew drawings/osso_part_storage_v2 (.py/.png/.pdf): container hierarchy, plan view with paired 2020 rails cantilevered from the back frame and the tray on a slide (extended and parked), YZ section parked vs extended, callouts 1-17, notes table, and title block rev v2. The matrix + hook concept v1 was moved to drawings/archive/ and marked not active. No sync yet, per the designer.

2026-10-25 8:33 AM EDT — Tray rails supported front and back (no cantilever)

Oct 25, 2026 · 8:33 AM ET · journal ↗

the designer: for the next drawing revision, the parts tray rails (paired 2020) connect to the frame at both front and back for stability; no cantilever needed. This removes the tip sag and ringing concerns. Check for the next rev: the front support must clear the bed's Y travel and the operator access.

2026-10-25 8:33 AM EDT — Front rail support clearance requirement

Oct 25, 2026 · 8:33 AM ET · journal ↗

the designer approved: the front support of the tray rails must sit above the bed's full Y travel and the tallest TH bodies, so it doesn't block the bed or operator access for loading boards. Apply in storage drawing v3.

2026-10-25 11:14 AM EDT — Design note: companion boards as snap-outs inside the 140x140 board

Oct 25, 2026 · 11:14 AM ET · journal ↗

the designer: the current 140x140 middle and top boards are just the start. Next version: the same board, with companion boards on its interior as a snap-out frame. Same alignment marks and frame drills. No interposer. For now the template drills and cuts with snap-outs (tabs). Later, when a higher-powered 355 nm laser is available, the laser can drill and cut the companions out.

2026-10-25 11:31 AM EDT — Companion snap-outs: any shape

Oct 25, 2026 · 11:31 AM ET · journal ↗

the designer: in the future, companion boards can be any shape, as long as they fit within the 140x140 frame.

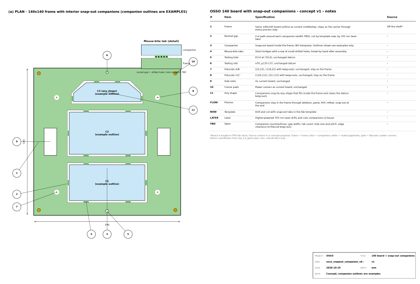

2026-10-25 11:36 AM EDT — Drawing: 140 board with snap-out companions v1

Oct 25, 2026 · 11:36 AM ET · journal ↗

Drew drawings/osso_snapout_companion_v1 (.py/.png/.pdf): the 140x140 frame with the unchanged datum (tooling hole D3.0 at (70,4), slot x70 y135-137, fiducials A/B/C/C' with keep-outs, side slots, power corners, from top_v1i_geom.json), three EXAMPLE interior companions (two rectangles plus one non-rectangular to show "any shape"), routed gaps, mouse-bite tabs, a tab detail, callouts 1-11, notes, and a title block. No interposer. Open: companion count and outlines, gap width, tab count and hole size and pitch.

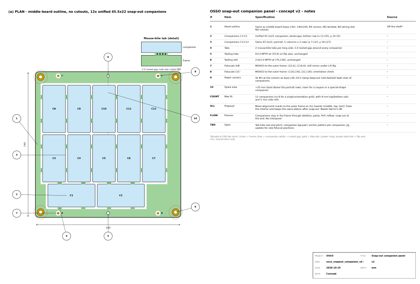

2026-10-25 11:48 AM EDT — Snap-out companion panel v2

Oct 25, 2026 · 11:48 AM ET · journal ↗

the designer: the panel outline matches the middle board (base v3b, 140x140 R4) with no cutouts; maximize the count of the 45.5x22 companions the middle board needs; consider moving the alignment marks on all boards to the outer frame. Drew drawings/osso_snapout_companion_v2: 12 companions (2 landscape in a bottom row, plus 10 portrait in a 5x2 grid), a 2.0 routed gap, mouse-bite tabs (some between neighboring companions), 8 mm top/bottom rails and 5 mm side rails. Tooling hole (70,4) and slot (70,136) unchanged; fiducials moved to the frame at A (22,4), B (118,4), C (118,136), C' (22,136); power corners kept clear of companions (D13 keep-out); about a 20 mm spare band at the top. The proposal to move the marks to the frame on all boards awaits the designer's OK.

2026-10-25 11:50 AM EDT — Rule: all boards share the same frame fiducials

Oct 25, 2026 · 11:50 AM ET · journal ↗

the designer approved: every OSSO board (middle, top, test, companion panels) uses the same fiducials on the outer frame: A (22,4), B (118,4), C (118,136), C' (22,136), with the tooling hole (70,4) and slot (70,136) unchanged. The jigs and camera fiducial positions need updating to match.

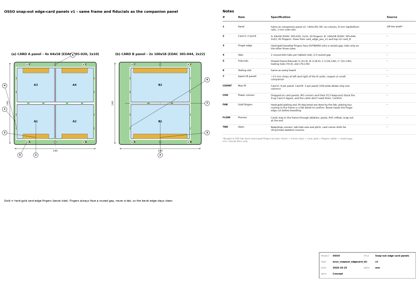

2026-10-25 11:54 AM EDT — Drawing: snap-out edge-card panels v1

Oct 25, 2026 · 11:54 AM ET · journal ↗

Drew drawings/osso_snapout_edgecard_v1 (.py/.png/.pdf), with the same frame, outline, and shared fiducials as companion panel v2. Card A 64x58 (EDAC 305-020, 2x10): 4 per panel (2x2). Card B 100x58 (EDAC 305-044, 2x22): 2 per panel, with about 15 mm spare at the sides. Hard-gold fingers face outward onto routed gaps, never tabs. Side rails narrowed to 3 mm. Power corners dropped on the card panels (they block the 4-up A layout and the cards don't use them): needs the designer's confirmation. Fab detail to confirm: gold plating bus and bevel with the snap-out frame.

2026-10-25 11:58 AM EDT — Confirmed: corner drills not needed on card panels

Oct 25, 2026 · 11:58 AM ET · journal ↗

the designer: as long as the jig can hold these boards, the corner (power) drills aren't essential. The card panels drop the M3 corners; the jig registers on the tooling hole (70,4), slot (70,136), and the frame fiducials.

2026-10-25 11:59 AM EDT — Rule: hold all boards the same way

Oct 25, 2026 · 11:59 AM ET · journal ↗

the designer: hold all boards the same way to reduce jig types. Proposed common hold: dowels in the tooling hole (70,4) and slot (70,136), clamping on the 8 mm top/bottom frame rails clear of the fiducial keep-outs, with no dependence on the corner drills. Applies to the middle, top, test, companion, and card panels.
